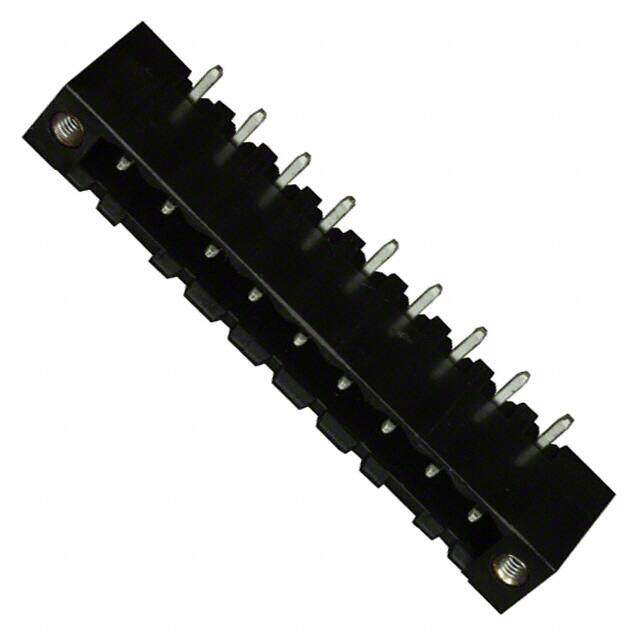

ELFH09210E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 9POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $3.63
Unit Price: USD $3.6344
≥1 USD $3.6344
≥10 USD $2.76936
≥100 USD $2.59424
≥500 USD $2.305952
≥1000 USD $2.255792
≥3000 USD $2.08032
Inventory: 332
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2003
Series ELFH
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 9
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12.06mm
Insulation Height 0.319 8.10mm
Current Rating 15A
Termination Style Solder
Number of Contacts 9
Housing Color Black
Voltage 300V
Contact Tail Length 0.155 3.94mm
Max Current Rating 15A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 15A
Positions Per Level 9
Header Orientation 90°, Right Angle
Number of Positions Per Level 9
Dimensions
Length 55.88mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
