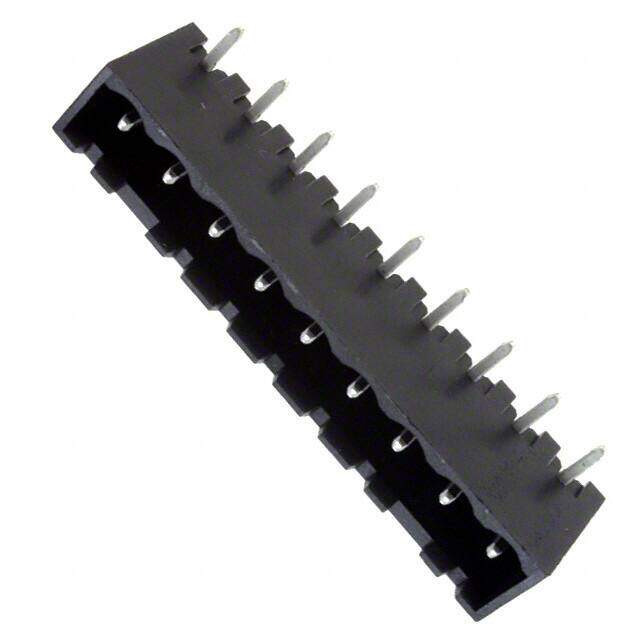

ELFH09210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 9POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $1.57
Unit Price: USD $1.5664
≥1 USD $1.5664
≥10 USD $1.1836
≥100 USD $1.096832
≥500 USD $0.986304
≥1000 USD $0.962192
≥3000 USD $0.847
Inventory: 129
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 45.87mm
Technical
Fastening Method CONNECTOR
Header Orientation 90°, Right Angle
Safety Approval UL; VDE; CSA
Number of Ways 9
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 9
Current 15A
Number of Levels 1
Max Current Rating 15A
Voltage 300V
Insulation Resistance 100GOhm
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Depth 12.06mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series ELFH
Published 2003
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
