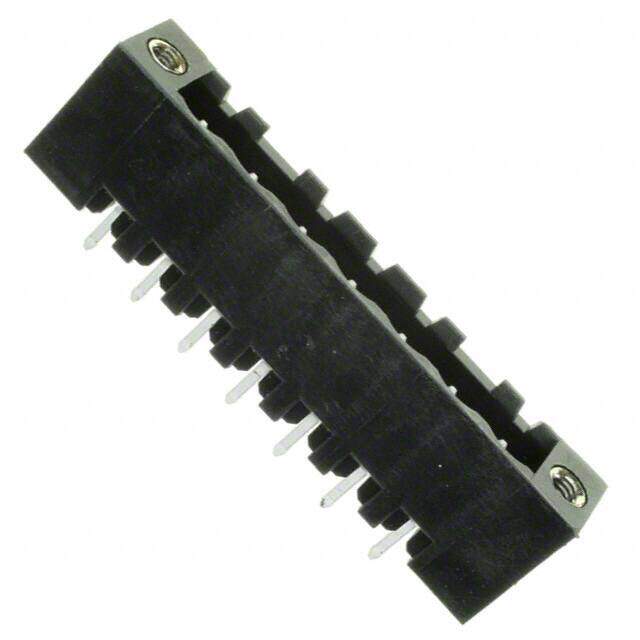

ELFH07250E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 7POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $1.83
Unit Price: USD $1.826456
≥1 USD $1.826456
≥10 USD $1.723075
≥100 USD $1.625543
≥500 USD $1.533533
≥1000 USD $1.446727
Inventory: 5715
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 7
Header Orientation Vertical
Positions Per Level 7
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Voltage 300V
Number of Contacts 7
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Orientation Vertical
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Number of Positions 7
Type Header, Male Pins, Shrouded (4 Side)
Termination Solder
Part Status Active
Feature Mating Flange
Series ELFH
Published 2003
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
