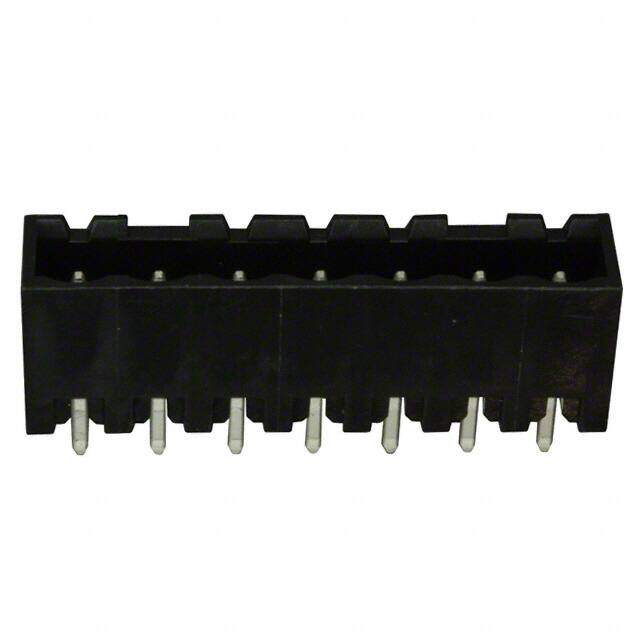

ELFH07250
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 7POS VERT 5.08MM
PDF
/
Inventory: 2336
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2006
Series ELFH
Part Status Active
Termination Solder
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 7
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Vertical
Depth 12.06mm
Insulation Height 0.319 8.10mm
Current Rating 15A
Termination Style Solder
Number of Contacts 7
Housing Color Black
Insulation Resistance 100GOhm
Voltage 300V
Max Current Rating 15A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 15A
Positions Per Level 7
Header Orientation Vertical
Number of Positions Per Level 7
Dimensions
Length 37.38mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
