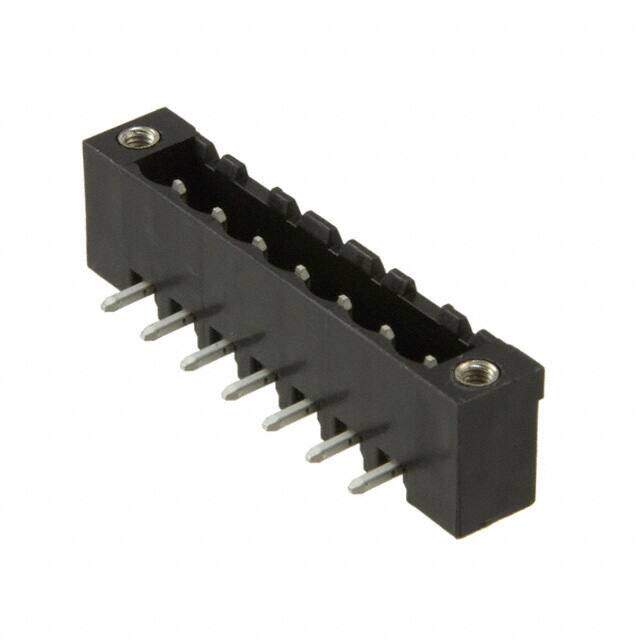

ELFH07210E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 7POS 90DEG 5.08MM
PDF
/
Inventory: 7012
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 7
Header Orientation 90°, Right Angle
Positions Per Level 7
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.155 3.94mm
Voltage 300V
Number of Contacts 7
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Number of Positions 7
Type Header, Male Pins, Shrouded (4 Side)
Termination Solder
Part Status Active
Feature Mating Flange
Series ELFH
Published 2003
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
