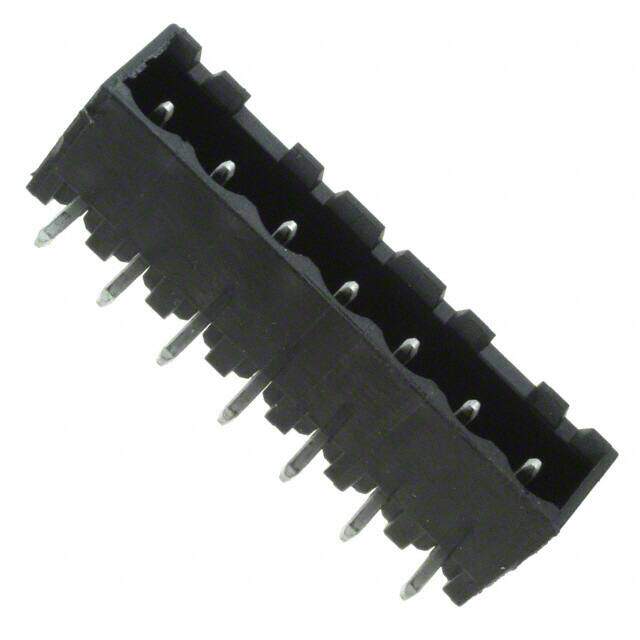

ELFH07210 image
Favorite
ELFH07210 image
Favorite

ELFH07210

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 7POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $2.36
Unit Price: USD $2.363167
≥1 USD $2.363167
≥10 USD $2.229407
≥100 USD $2.10322
≥500 USD $1.984153
≥1000 USD $1.871856
Inventory: 8662
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Length 35.71mm

Technical

Number of Positions Per Level 7
Header Orientation 90°, Right Angle
Positions Per Level 7
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 15A
Voltage 300V
Insulation Resistance 100GOhm
Housing Color Black
Number of Contacts 7
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Depth 12.06mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 7
Type Header, Male Pins, Shrouded (4 Side)
Termination Solder
Part Status Active
Series ELFH
Published 2003
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass

Supply Chain

Factory Lead Time 8 Weeks
