ELFH06250
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

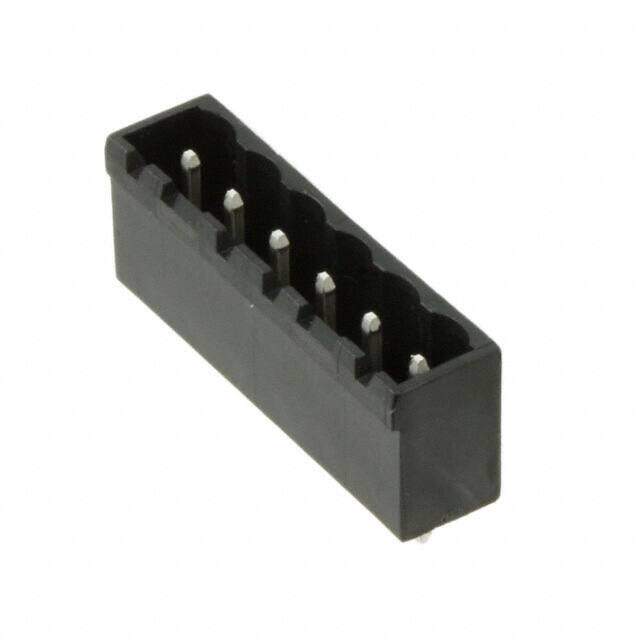

TERM BLOCK HDR 6POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.5048
≥1 USD $1.5048
≥10 USD $1.13696
≥100 USD $1.053888
≥500 USD $0.947408
≥1000 USD $0.924352
≥3000 USD $0.808826
Inventory: 226
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 30.63mm
Technical
Number of Positions Per Level 6
Header Orientation Vertical
Positions Per Level 6
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Number of Poles 6
Current 15A
Number of Levels 1
Max Current Rating 15A
Voltage 300V
Housing Color Black
Number of Contacts 6
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Depth 8.1mm
Orientation Vertical
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 6
Type Header, Male Pins, Shrouded (4 Side)
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series ELFH
Published 2003
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
