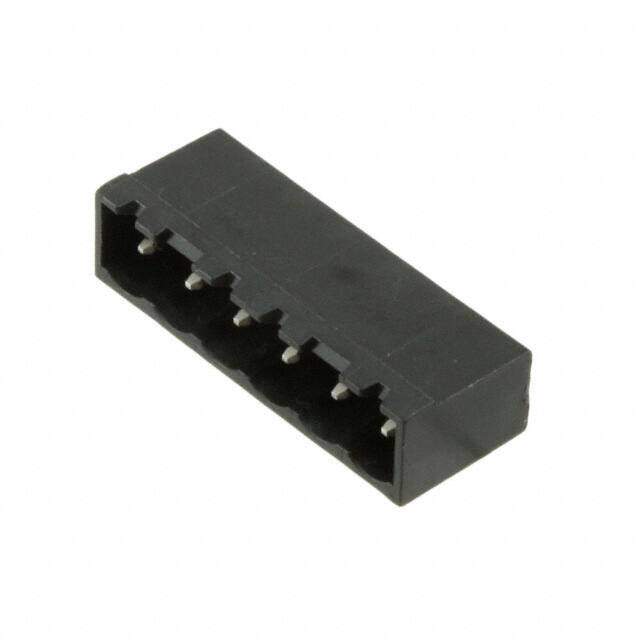

ELFH06210 image
Favorite
ELFH06210 image
Favorite

ELFH06210

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 6POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.5048
≥1 USD $1.5048
≥10 USD $1.13696
≥100 USD $1.053888
≥500 USD $0.947408
≥1000 USD $0.924352
≥3000 USD $0.808826
Inventory: 482
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2003
Series ELFH
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12.06mm
Insulation Height 0.319 8.10mm
Current Rating 15A
Termination Style Solder
Number of Contacts 6
Housing Color Black
Insulation Resistance 100GOhm
Voltage 300V
Max Current Rating 15A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 15A
Positions Per Level 6
Header Orientation 90°, Right Angle
Number of Positions Per Level 6

Dimensions

Length 30.63mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
