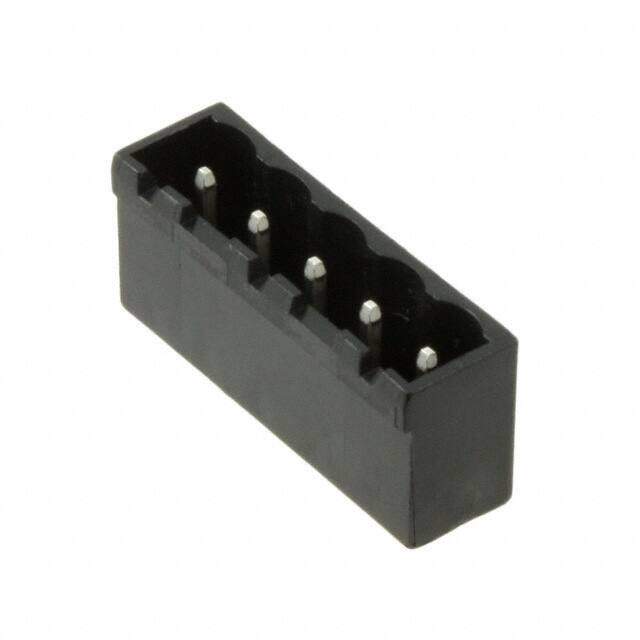

ELFH05250
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 5POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $1.62
Unit Price: USD $1.6192
≥1 USD $1.6192
≥10 USD $1.13872
≥100 USD $1.062336
≥500 USD $0.964128
≥1000 USD $0.959904
≥3000 USD $0.810594
Inventory: 1504
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2006
Series ELFH
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 300V
Additional Feature PBT, UL 94V-0
Pitch 0.200 5.08mm
Depth 8.1mm
Insulation Height 0.319 8.10mm
Current Rating 15A
Termination Style Solder
Voltage 300V
Max Current Rating 15A
Number of Levels 1
Current 15A
Number of Poles 5
Contact Mating Finish Tin
Number of Decks 1
Number of Ways 5
Safety Approval UL; VDE; CSA
Header Orientation Vertical
Fastening Method CONNECTOR
Dimensions
Length 25.55mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
