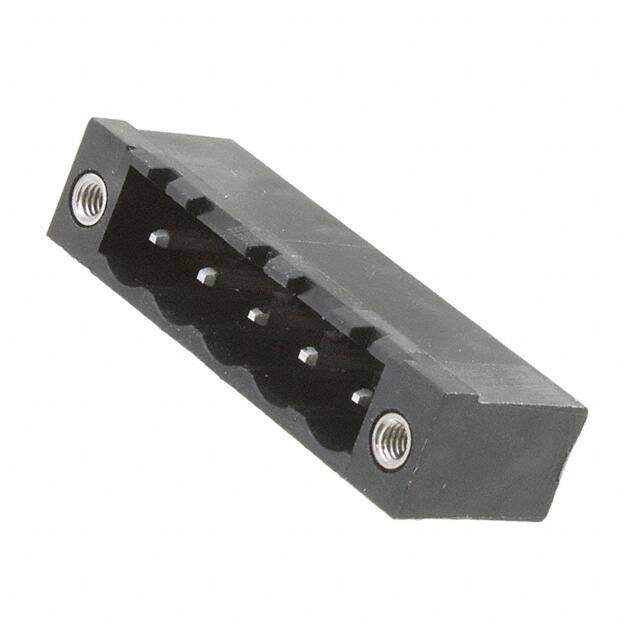

ELFH05210E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 5POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $2.52
Unit Price: USD $2.5168
≥1 USD $2.5168
≥10 USD $1.90256
≥100 USD $1.763168
≥500 USD $1.585232
≥1000 USD $1.546512
≥3000 USD $1.353194
Inventory: 60
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 5
Header Orientation 90°, Right Angle
Positions Per Level 5
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.155 3.94mm
Voltage 300V
Number of Contacts 5
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Number of Positions 5
Type Header, Male Pins, Shrouded (4 Side)
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Mating Flange
Series ELFH
Published 2006
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
