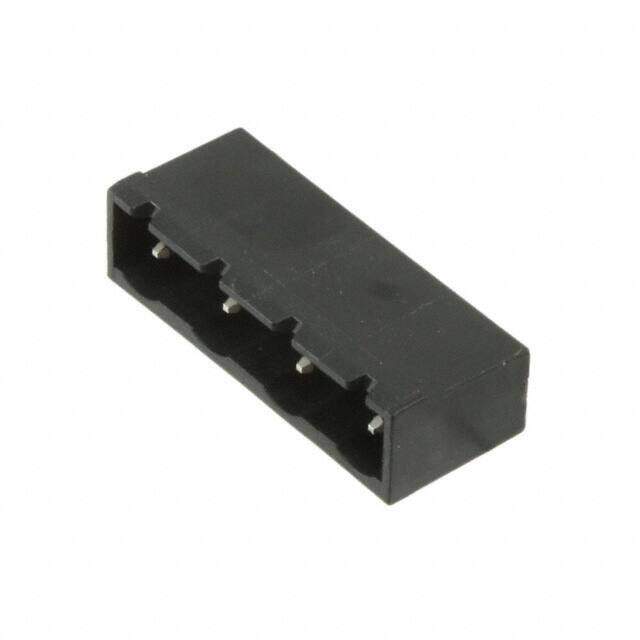

ELFH04410 image
Favorite
ELFH04410 image
Favorite

ELFH04410

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS 90DEG 7.62MM
PDF
/
Inventory: 7824
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Brass
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole

Technical

Operating Temperature 105°C
Packaging Bulk
Published 2006
Series ELFH
Part Status Active
Termination Solder
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Black
Number of Rows 1
Voltage - Rated 300V
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 12.06mm
Insulation Height 0.319 8.10mm
Current Rating 15A
Termination Style Solder
Number of Contacts 4
Housing Color Black
Voltage 300V
Contact Tail Length 0.155 3.94mm
Max Current Rating 15A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 15A
Positions Per Level 4
Header Orientation 90°, Right Angle
Number of Positions Per Level 4

Dimensions

Length 28.6mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
