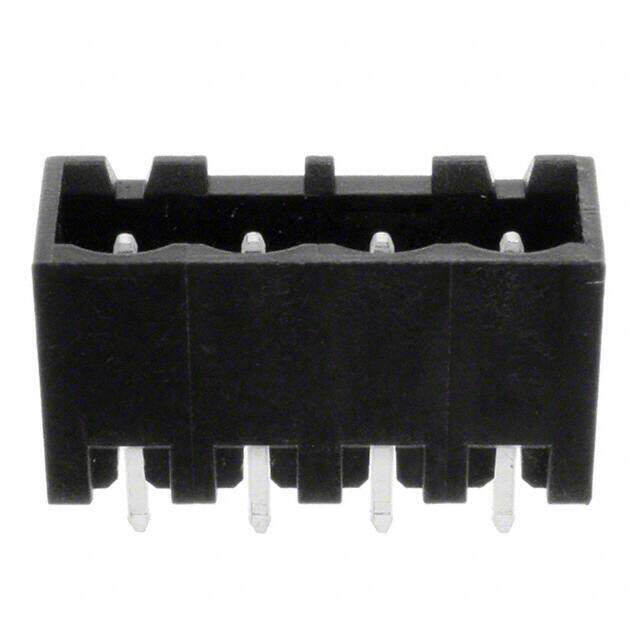

ELFH04250
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 4POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.2848
≥1 USD $1.2848
≥10 USD $0.902
≥100 USD $0.840928
≥500 USD $0.763312
≥1000 USD $0.759968
≥3000 USD $0.641696
Inventory: 1168
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2003
Series ELFH
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Vertical
Depth 8.1mm
Insulation Height 0.319 8.10mm
Current Rating 15A
Termination Style Solder
Number of Contacts 4
Housing Color Black
Insulation Resistance 100GOhm
Voltage 300V
Max Current Rating 15A
Number of Levels 1
Current 15A
Number of Poles 4
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 15A
Positions Per Level 4
Header Orientation Vertical
Number of Positions Per Level 4
Dimensions
Length 20.47mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
