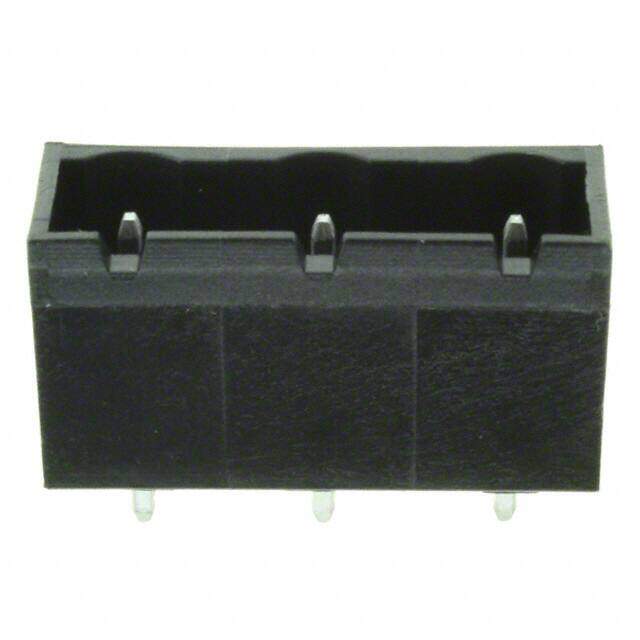

ELFH03450
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 3POS VERT 7.62MM
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.2848
≥1 USD $1.2848
≥10 USD $0.902
≥100 USD $0.840928
≥500 USD $0.763312
≥1000 USD $0.759968
≥3000 USD $0.641696
Inventory: 573
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature 105°C
Packaging Bulk
Published 2006
Series ELFH
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Color Black
Number of Rows 1
Voltage - Rated 300V
Pitch 0.300 7.62mm
Orientation Straight
Depth 8.1mm
Current Rating 15A
Termination Style Solder
Number of Contacts 3
Housing Color Black
Voltage 300V
Max Current Rating 15A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 15A
Positions Per Level 3
Header Orientation Vertical
Number of Positions Per Level 3
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
