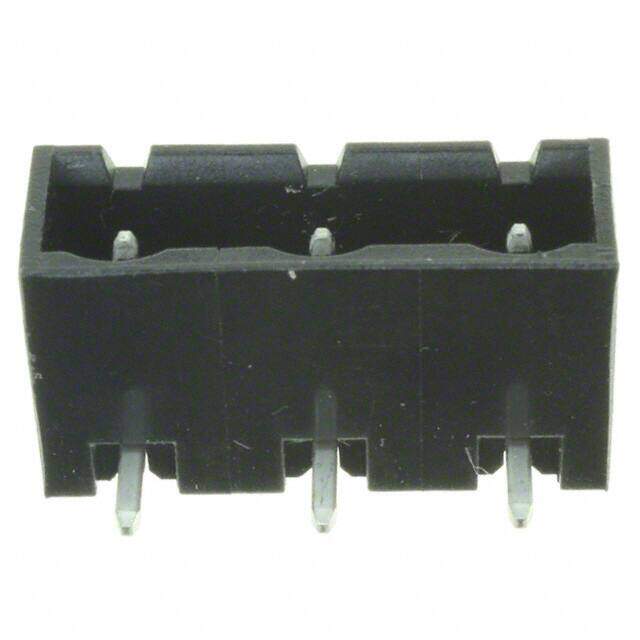

ELFH03410 image
Favorite
ELFH03410 image
Favorite

ELFH03410

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 3POS 90DEG 7.62MM
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.2848
≥1 USD $1.2848
≥10 USD $0.902
≥100 USD $0.840928
≥500 USD $0.763312
≥1000 USD $0.759968
≥3000 USD $0.641722
Inventory: 56
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 3
Header Orientation 90°, Right Angle
Positions Per Level 3
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 15A
Contact Tail Length 0.155 3.94mm
Voltage 300V
Housing Color Black
Number of Contacts 3
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Depth 12.06mm
Orientation Right Angle
Pitch 0.300 7.62mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Number of Positions 3
Type Header, Male Pins, Shrouded (4 Side)
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series ELFH
Published 2006
Packaging Bulk
Operating Temperature 105°C

Physical

Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Brass

Supply Chain

Factory Lead Time 8 Weeks
