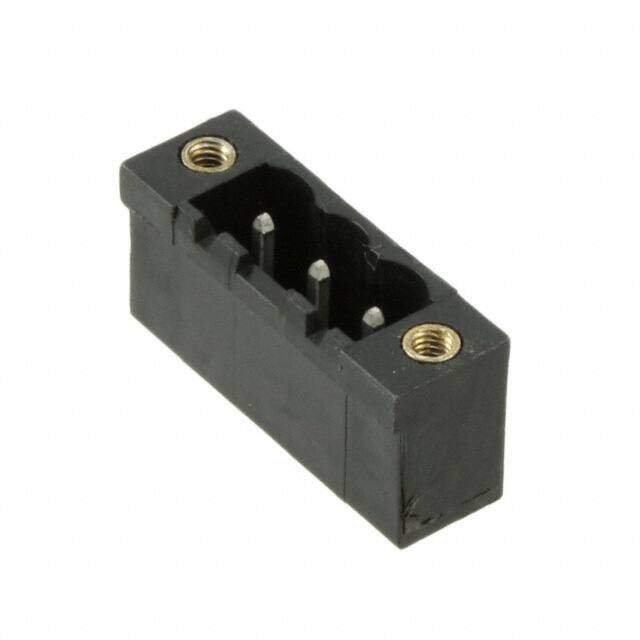

ELFH03250E image
Favorite
ELFH03250E image
Favorite

ELFH03250E

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 3POS VERT 5.08MM
PDF
/
Inventory: 9883
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Length 25.4mm

Technical

Number of Positions Per Level 3
Header Orientation Vertical
Positions Per Level 3
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 15A
Voltage 300V
Housing Color Black
Number of Contacts 3
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Depth 8.1mm
Orientation Vertical
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 3
Type Header, Male Pins, Shrouded (4 Side)
Termination Solder
Part Status Active
Feature Mating Flange
Series ELFH
Published 2006
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass

Supply Chain

Factory Lead Time 8 Weeks
