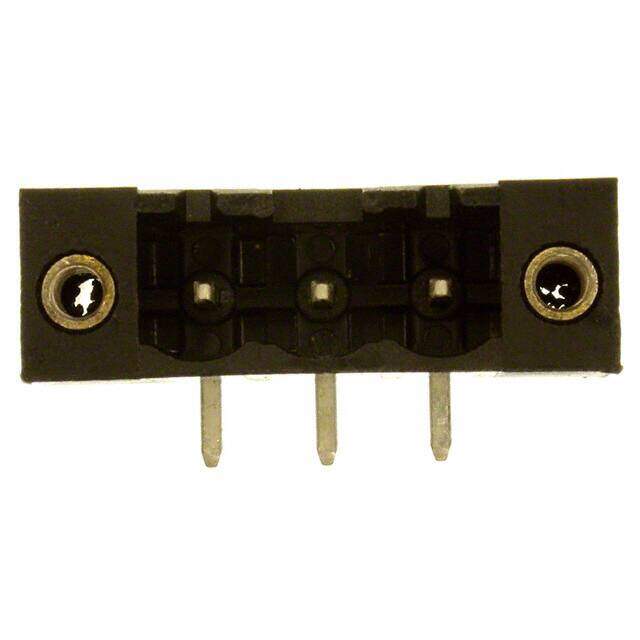

ELFH03210E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 3POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $1.96
Unit Price: USD $1.9624
≥1 USD $1.9624
≥10 USD $1.4872
≥100 USD $1.37808
≥500 USD $1.23904
≥1000 USD $1.208768
≥3000 USD $1.05769
Inventory: 146
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2006
Series ELFH
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12.06mm
Insulation Height 0.319 8.10mm
Current Rating 15A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.155 3.94mm
Max Current Rating 15A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Header Orientation 90°, Right Angle
Number of Positions Per Level 3
Dimensions
Length 25.4mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
