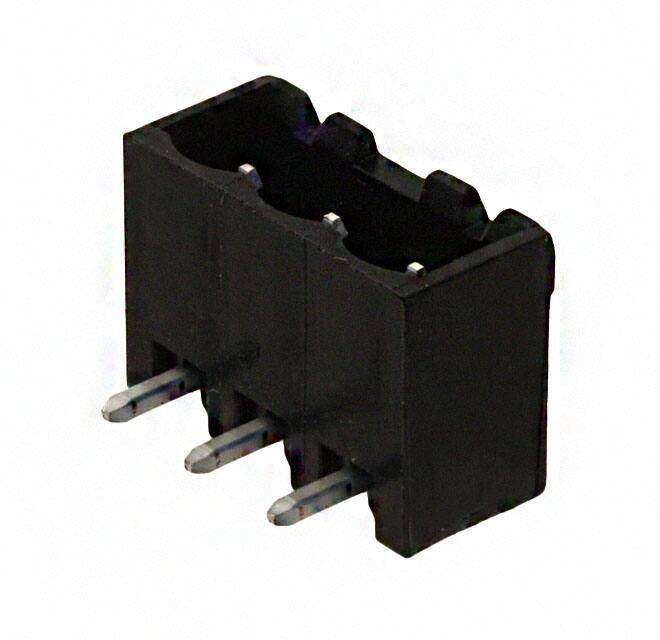

ELFH03210 image
Favorite
ELFH03210 image
Favorite

ELFH03210

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 3POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $0.98
Unit Price: USD $0.9768
≥1 USD $0.9768
≥10 USD $0.68816
≥100 USD $0.641696
≥500 USD $0.58256
≥1000 USD $0.57992
≥3000 USD $0.48972
Inventory: 2448
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2003
Series ELFH
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 300V
Additional Feature PBT, UL 94V-0
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12.06mm
Insulation Height 0.319 8.10mm
Current Rating 15A
Termination Style Solder
Insulation Resistance 100GOhm
Voltage 300V
Max Current Rating 15A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Number of Ways 3
Safety Approval UL; VDE; CSA
Header Orientation 90°, Right Angle
Number of Positions Per Level 3
Fastening Method CONNECTOR

Dimensions

Length 17.06mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
