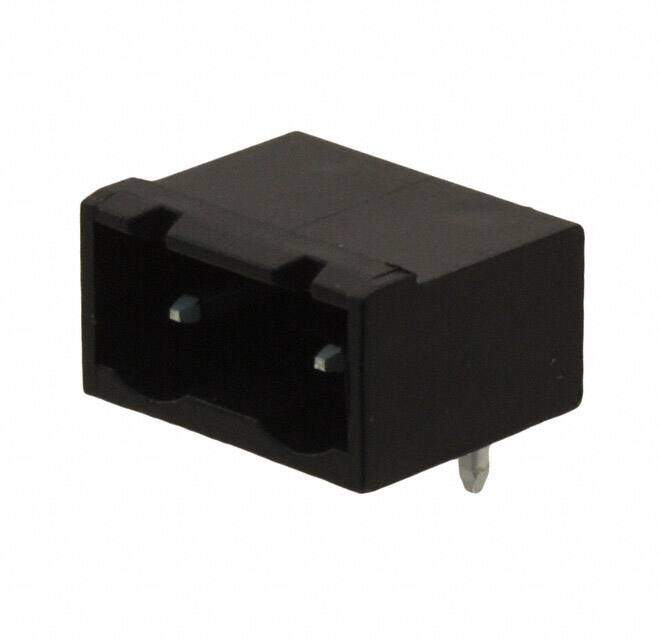

ELFH02410
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 2POS 90DEG 7.62MM
PDF
/
Inventory: 7492
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 13.36mm
Technical
Number of Positions Per Level 2
Header Orientation 90°, Right Angle
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 15A
Contact Tail Length 0.155 3.94mm
Voltage 300V
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Depth 12.06mm
Orientation Right Angle
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Voltage - Rated 300V
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series ELFH
Published 2006
Packaging Bulk
Operating Temperature 105°C
Physical
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
