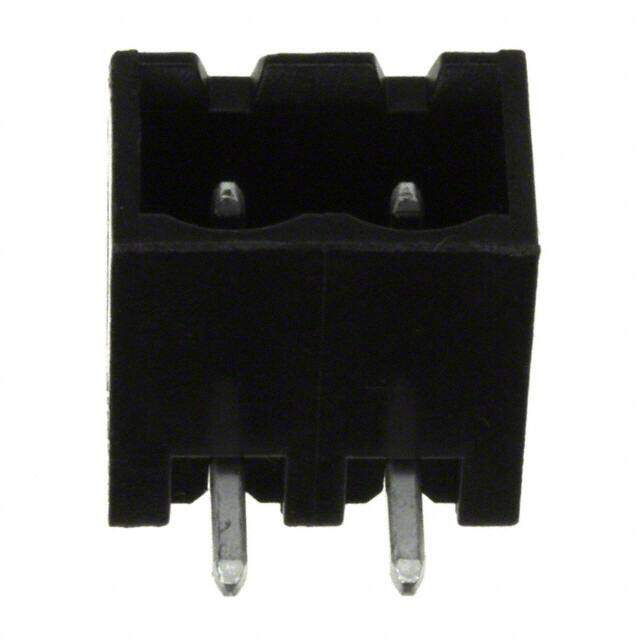

ELFH02210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 2POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $1.06
Unit Price: USD $1.0648
≥1 USD $1.0648
≥10 USD $0.66528
≥100 USD $0.569536
≥500 USD $0.511984
≥1000 USD $0.501248
≥3000 USD $0.426624
Inventory: 3487
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 10.31mm
Technical
Number of Positions Per Level 2
Header Orientation 90°, Right Angle
Positions Per Level 2
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 15A
Voltage 300V
Insulation Resistance 100GOhm
Housing Color Black
Number of Contacts 2
Termination Style Solder
Current Rating 15A
Insulation Height 0.319 8.10mm
Depth 12.06mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated 300V
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 2
Type Header, Male Pins, Shrouded (4 Side)
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series ELFH
Published 2006
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
