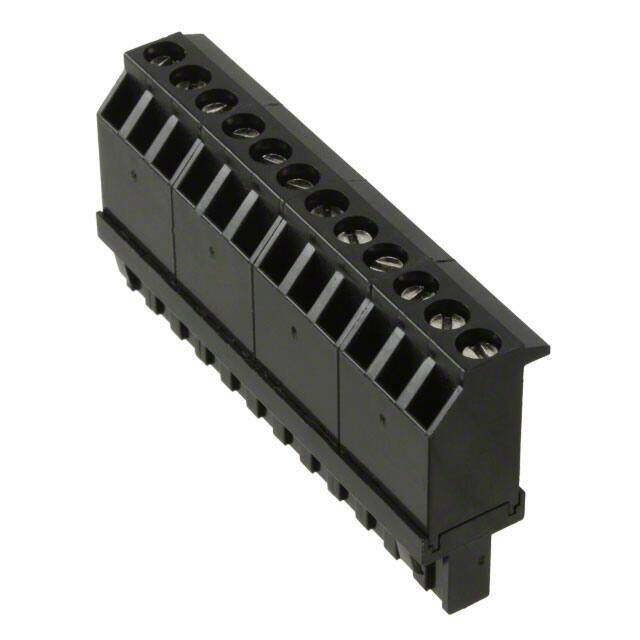

ELFF12230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 12POS 5.08MM
PDF
/
Buying Options
Total Price: USD $7.06
Unit Price: USD $7.061511
≥1 USD $7.061511
≥10 USD $6.661807
≥100 USD $6.284725
≥500 USD $5.928983
≥1000 USD $5.593376
Inventory: 1138
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 12
Wire Strip Length 7.87mm 12.45mm
Plug Wire Entry 90°
Positions Per Level 12
Torque - Screw 0.79 Nm (7.0 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Number of Circuits 12
Voltage 300V
Housing Color Black
Number of Contacts 12
Termination Style Screw - Rising Cage Clamp
Current Rating 15A
Insulation Height 1.218 30.94mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 300V
Gender Female
Number of Rows 1
Color Black
Number of Positions 12
Type Plug, Female Sockets
Termination Screw
Part Status Active
Feature Retention Latches (Wire Side)
Series ELFF
Published 2006
Packaging Bulk
Operating Temperature 105°C
Physical
Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
