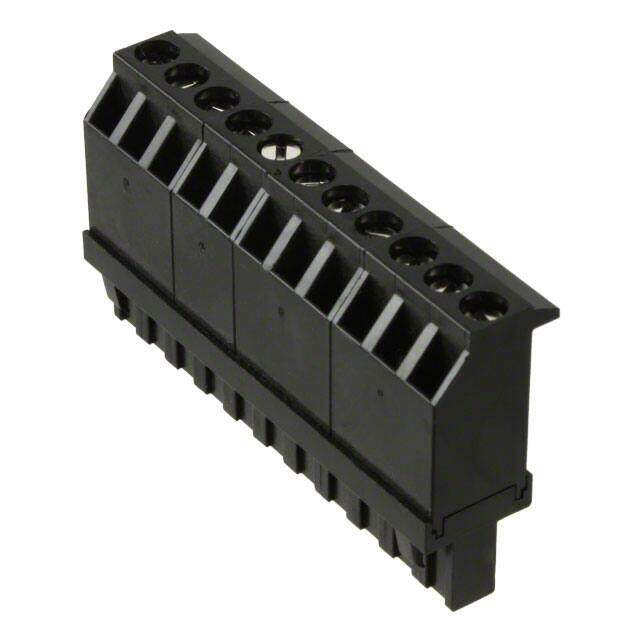

ELFF11230 image
Favorite
ELFF11230 image
Favorite

ELFF11230

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 11POS 5.08MM
PDF
/
Buying Options
Total Price: USD $7.24
Unit Price: USD $7.236671
≥1 USD $7.236671
≥10 USD $6.827047
≥100 USD $6.440615
≥500 USD $6.076055
≥1000 USD $5.732122
Inventory: 1123
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)

Technical

Operating Temperature 105°C
Packaging Bulk
Published 2012
Series ELFF
Feature Retention Latches (Wire Side)
Part Status Active
Termination Screw
Type Plug, Female Sockets
Number of Positions 11
Color Black
Number of Rows 1
Gender Female
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Straight
Depth 30.93mm
Insulation Height 1.218 30.94mm
Current Rating 15A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 11
Housing Color Black
Voltage 300V
Number of Circuits 11
Max Supply Voltage 300V
Max Current Rating 15A
Number of Levels 1
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Current - UL 15A
Torque - Screw 0.79 Nm (7.0 Lb-In)
Positions Per Level 11
Plug Wire Entry 90°
Wire Strip Length 7.87mm 12.45mm
Number of Positions Per Level 11

Dimensions

Length 55.88mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
