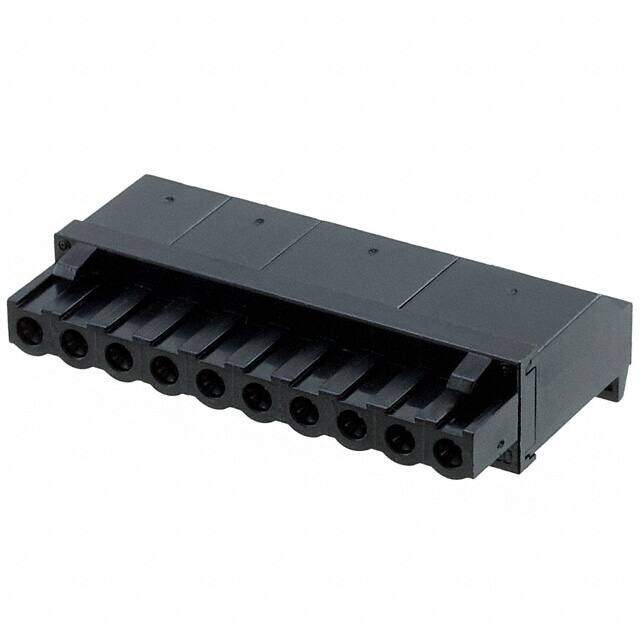

ELFF10230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 10POS 5.08MM
PDF
/
Buying Options
Total Price: USD $6.24
Unit Price: USD $6.2392
≥1 USD $6.2392
≥10 USD $4.9192
≥100 USD $4.679488
≥500 USD $4.247584
≥1000 USD $4.079592
≥3000 USD $3.599622
Inventory: 162
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)
Technical
Operating Temperature 105°C
Packaging Bulk
Published 2006
Series ELFF
Feature Retention Latches (Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Type Plug, Female Sockets
Number of Positions 10
Color Black
Number of Rows 1
Gender Female
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Straight
Depth 30.93mm
Insulation Height 1.218 30.94mm
Current Rating 15A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 10
Housing Color Black
Voltage 300V
Number of Circuits 10
Max Supply Voltage 300V
Max Current Rating 15A
Number of Levels 1
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Current - UL 15A
Torque - Screw 0.79 Nm (7.0 Lb-In)
Positions Per Level 10
Plug Wire Entry 90°
Wire Strip Length 7.87mm 12.45mm
Number of Positions Per Level 10
Dimensions
Length 50.8mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
