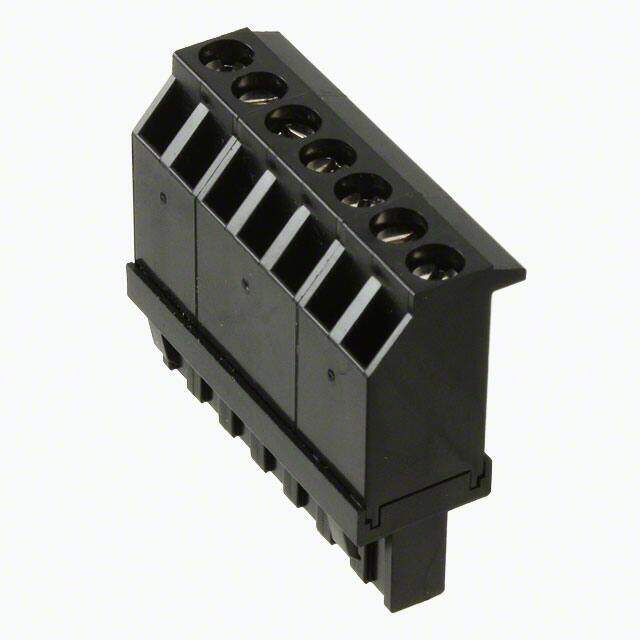

ELFF07230

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 7POS 5.08MM
PDF
/
Buying Options
Total Price: USD $5.14
Unit Price: USD $5.138226
≥1 USD $5.138226
≥10 USD $4.847384
≥100 USD $4.573002
≥500 USD $4.314148
≥1000 USD $4.069958
Inventory: 5102
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Length 35.56mm

Technical

Number of Positions Per Level 7
Wire Strip Length 7.87mm 12.45mm
Plug Wire Entry 90°
Positions Per Level 7
Torque - Screw 0.79 Nm (7.0 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Max Current Rating 15A
Max Supply Voltage 300V
Number of Circuits 7
Voltage 300V
Housing Color Black
Number of Contacts 7
Termination Style Screw - Rising Cage Clamp
Current Rating 15A
Insulation Height 1.218 30.94mm
Depth 30.93mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 300V
Gender Female
Number of Rows 1
Color Black
Number of Positions 7
Type Plug, Female Sockets
Termination Screw
Part Status Active
Feature Retention Latches (Wire Side)
Series ELFF
Published 2006
Packaging Bulk
Operating Temperature 105°C

Physical

Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 8 Weeks
