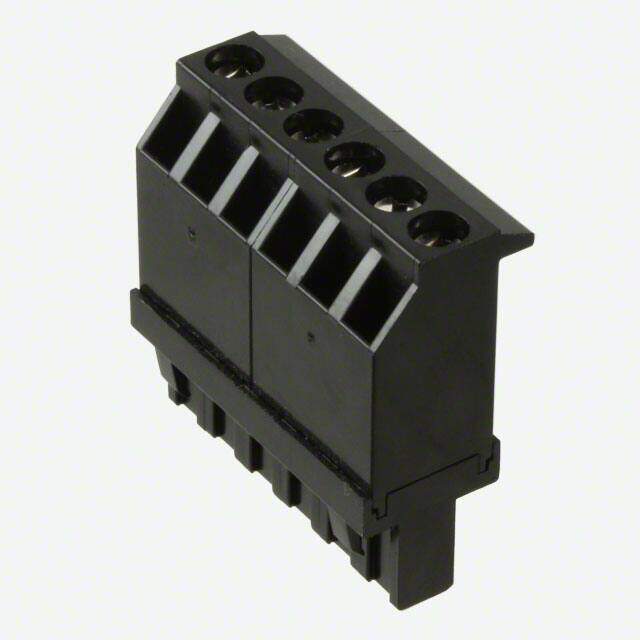

ELFF06230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 6POS 5.08MM
PDF
/
Inventory: 6301
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material PPO
Housing Material Polyphenylene Oxide (PPO)
Technical
Operating Temperature 105°C
Packaging Bulk
Published 2006
Series ELFF
Feature Retention Latches (Wire Side)
Part Status Active
Termination Screw
Type Plug, Female Sockets
Number of Positions 6
Color Black
Number of Rows 1
Gender Female
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Straight
Depth 30.93mm
Insulation Height 1.218 30.94mm
Current Rating 15A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 6
Housing Color Black
Voltage 300V
Number of Circuits 6
Max Supply Voltage 300V
Max Current Rating 15A
Number of Levels 1
Current 15A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Current - UL 15A
Torque - Screw 0.79 Nm (7.0 Lb-In)
Positions Per Level 6
Plug Wire Entry 90°
Wire Strip Length 7.87mm 12.45mm
Number of Positions Per Level 6
Dimensions
Length 30.48mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
