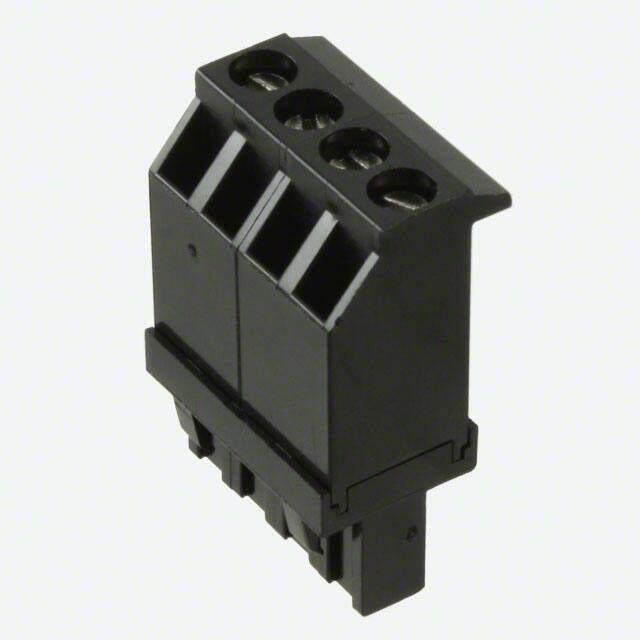

ELFF04230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 4POS 5.08MM
PDF
/
Buying Options
Total Price: USD $3.09
Unit Price: USD $3.0888
≥1 USD $3.0888
≥10 USD $2.35752
≥100 USD $2.207744
≥500 USD $1.9624
≥1000 USD $1.919808
≥3000 USD $1.77049
Inventory: 452
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 20.32mm
Technical
Number of Positions Per Level 4
Wire Strip Length 7.87mm 12.45mm
Plug Wire Entry 90°
Positions Per Level 4
Torque - Screw 0.79 Nm (7.0 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Max Current Rating 15A
Max Supply Voltage 300V
Number of Circuits 4
Voltage 300V
Housing Color Black
Number of Contacts 4
Termination Style Screw - Rising Cage Clamp
Current Rating 15A
Insulation Height 1.218 30.94mm
Depth 30.93mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 300V
Gender Female
Number of Rows 1
Color Black
Number of Positions 4
Type Plug, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Retention Latches (Wire Side)
Series ELFF
Published 2006
Packaging Bulk
Operating Temperature 105°C
Physical
Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
