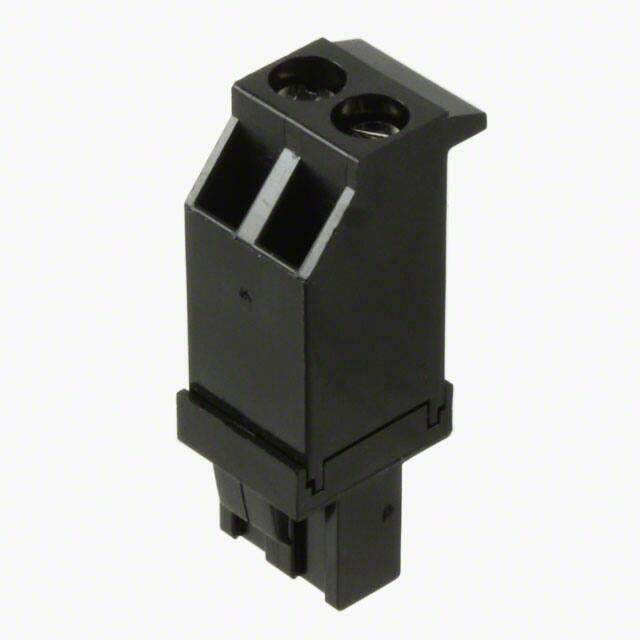

ELFF02230 image
Favorite
ELFF02230 image
Favorite

ELFF02230

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 2POS 5.08MM
PDF
/
Buying Options
Total Price: USD $1.76
Unit Price: USD $1.76
≥1 USD $1.76
≥10 USD $1.33408
≥100 USD $1.236224
≥500 USD $1.11144
≥1000 USD $1.084336
≥3000 USD $0.948781
Inventory: 227
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 14.3764mm
Length 10.16mm

Technical

Number of Positions Per Level 2
Wire Strip Length 7.87mm 12.45mm
Plug Wire Entry 90°
Positions Per Level 2
Torque - Screw 0.79 Nm (7.0 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12 AWG, 14-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Max Current Rating 15A
Max Supply Voltage 300V
Number of Circuits 2
Voltage 300V
Housing Color Black
Number of Contacts 2
Termination Style Screw - Rising Cage Clamp
Current Rating 15A
Insulation Height 1.218 30.94mm
Depth 30.93mm
Orientation Straight
Pitch 0.200 5.08mm
Voltage - Rated 300V
Gender Female
Number of Rows 1
Color Black
Number of Positions 2
Type Plug, Female Sockets
Connector Type Screw
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Retention Latches (Wire Side)
Series ELFF
Published 2006
Packaging Bulk
Operating Temperature 105°C

Physical

Housing Material Polyphenylene Oxide (PPO)
Material PPO
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold, Tin
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 8 Weeks
