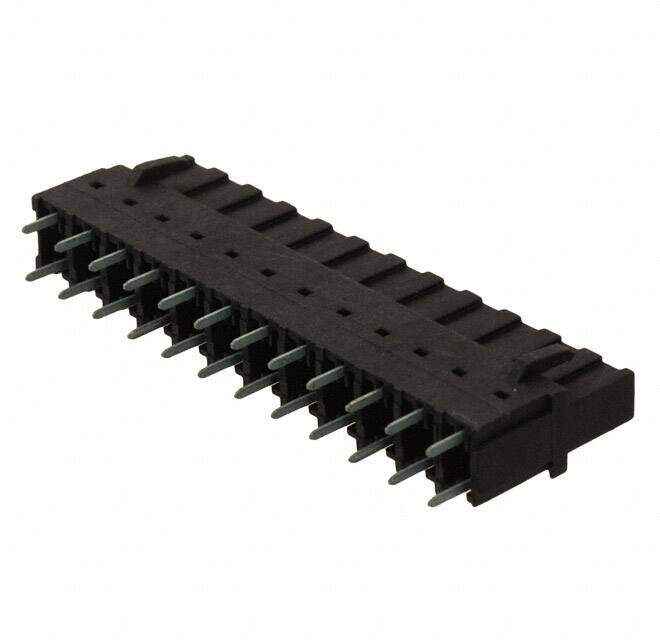

ELFB12280
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 12POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $3.84
Unit Price: USD $3.8368
≥1 USD $3.8368
≥10 USD $2.92688
≥100 USD $2.741376
≥500 USD $2.43672
≥1000 USD $2.383744
≥3000 USD $2.198354
Inventory: 124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA46), Nylon 4/6
Technical
Operating Temperature 125°C
Packaging Bulk
Published 2006
Series ELFB
Feature Interlocking (Side), Retention Latches
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 12
Color Black
Number of Rows 2
Additional Feature NYLON 46, UL: 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.750 19.05mm
Reach Compliance Code unknown
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Number of Ways 12
Safety Approval UL; VDE; CSA
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
