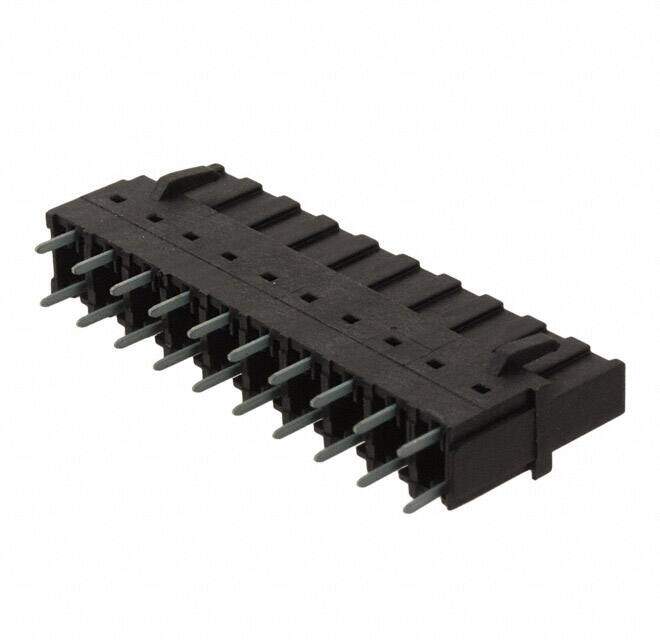

ELFB10280
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 10POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $3.49
Unit Price: USD $3.485178
≥1 USD $3.485178
≥10 USD $3.287901
≥100 USD $3.101789
≥500 USD $2.926218
≥1000 USD $2.760594
Inventory: 1259
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA46), Nylon 4/6
Technical
Operating Temperature 125°C
Packaging Bulk
Published 2006
Series ELFB
Feature Interlocking (Side), Retention Latches
Part Status Active
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 10
Color Black
Number of Rows 2
Additional Feature NYLON 46, UL: 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.750 19.05mm
Reach Compliance Code unknown
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Number of Ways 10
Safety Approval UL; VDE; CSA
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
