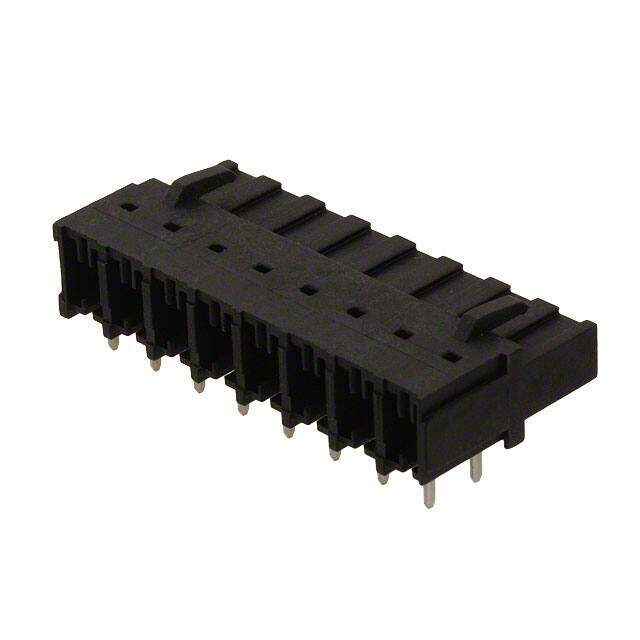

ELFB08230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 8POS 90DEG 5.08MM
PDF
/
Inventory: 8192
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Published 2006
Packaging Bulk
Operating Temperature 125°C
Header Orientation 90°, Right Angle
Safety Approval UL; VDE; CSA
Number of Ways 8
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.123 3.12mm
Voltage 300V
Termination Style Solder
Reach Compliance Code unknown
Insulation Height 0.391 9.93mm
Pitch 0.200 5.08mm
Additional Feature NYLON 46, UL: 94V-0
Number of Rows 2
Color Black
Number of Positions 8
Type Header, Female Sockets
ECCN Code EAR99
Part Status Active
Feature Interlocking (Side), Retention Latches
Series ELFB
Physical
Housing Material Polyamide (PA46), Nylon 4/6
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 8 Weeks
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
