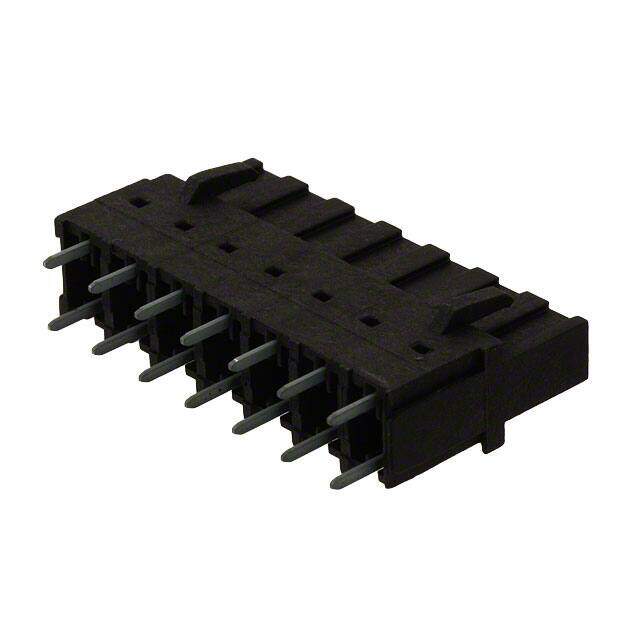

ELFB07280
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 7POS VERT 5.08MM
PDF
/
Inventory: 3695
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Number of Pins 7
Housing Material Polyamide (PA46), Nylon 4/6
Technical
Operating Temperature 125°C
Packaging Bulk
Published 2006
Series ELFB
Feature Interlocking (Side), Retention Latches
Part Status Active
Termination Solder
Type Header, Female Sockets
Number of Positions 7
Color Black
Pitch 0.200 5.08mm
Orientation Vertical
Insulation Height 0.750 19.05mm
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 15A
Number of Positions Per Level 7
Header Orientation Vertical
Positions Per Level 7
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
