ELFB06230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

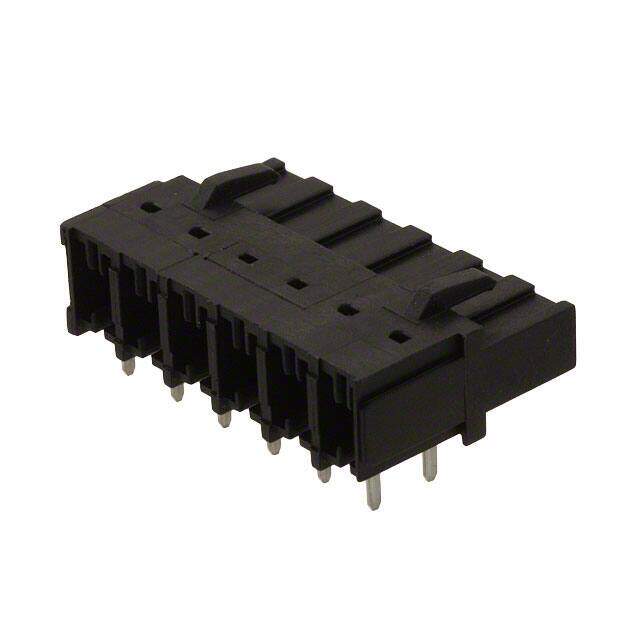

TERM BLOCK HDR 6POS 90DEG 5.08MM
PDF
/
Buying Options
Total Price: USD $2.6
Unit Price: USD $2.6048
≥1 USD $2.6048
≥10 USD $1.98352
≥100 USD $1.858208
≥500 USD $1.65176
≥1000 USD $1.615856
≥3000 USD $1.490157
Inventory: 281
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA46), Nylon 4/6
Technical
Operating Temperature 125°C
Packaging Bulk
Published 2006
Series ELFB
Feature Interlocking (Side), Retention Latches
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 6
Color Black
Number of Rows 2
Pitch 0.200 5.08mm
Insulation Height 0.391 9.93mm
Reach Compliance Code unknown
Termination Style Solder
Voltage 300V
Contact Tail Length 0.123 3.12mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Number of Ways 6
Safety Approval UL; VDE; CSA
Header Orientation 90°, Right Angle
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
