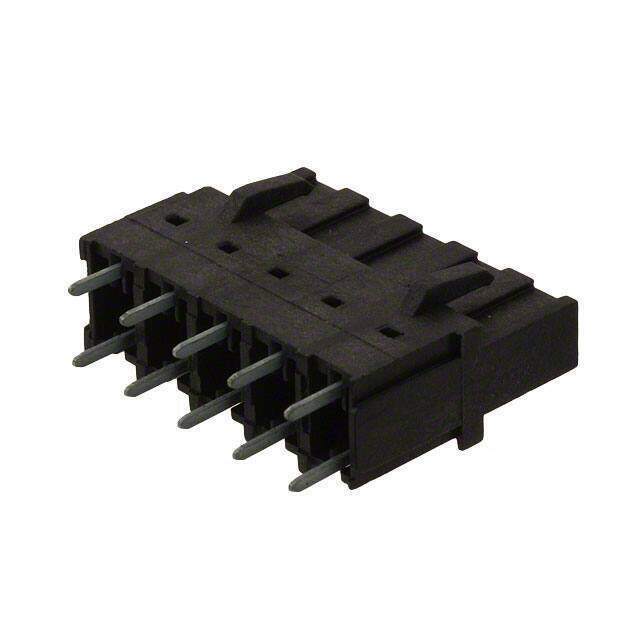

ELFB05280
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 5POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $2.28
Unit Price: USD $2.2792
≥1 USD $2.2792
≥10 USD $1.72744
≥100 USD $1.600896
≥500 USD $1.439328
≥1000 USD $1.404304
≥3000 USD $1.228762
Inventory: 551
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA46), Nylon 4/6
Technical
Operating Temperature 125°C
Packaging Bulk
Published 2006
Series ELFB
Feature Interlocking (Side), Retention Latches
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 5
Color Black
Number of Rows 2
Additional Feature NYLON 46, UL: 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.750 19.05mm
Reach Compliance Code unknown
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Number of Ways 5
Safety Approval UL; VDE; CSA
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
