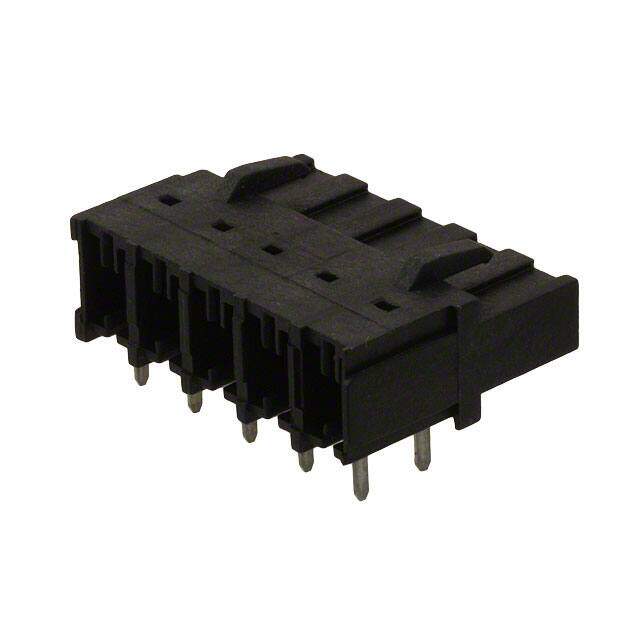

ELFB05230 image
Favorite
ELFB05230 image
Favorite

ELFB05230

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description ELFB RoHS Compliant 2006 Interlocking (Side) Retention Latches Terminal Block Header, Female Sockets 90° Right Angle 15A 300V 0.391 9.93mm
PDF
/
Buying Options
Total Price: USD $2.5
Unit Price: USD $2.499704
≥1 USD $2.499704
≥10 USD $2.358204
≥100 USD $2.224725
≥500 USD $2.0988
≥1000 USD $1.98
Inventory: 6305
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA46), Nylon 4/6

Technical

Operating Temperature 125°C
Packaging Bulk
Published 2006
Series ELFB
Feature Interlocking (Side), Retention Latches
Part Status Active
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 5
Color Black
Number of Rows 2
Additional Feature NYLON 46, UL: 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.391 9.93mm
Reach Compliance Code unknown
Termination Style Solder
Voltage 300V
Contact Tail Length 0.123 3.12mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Number of Ways 5
Safety Approval UL; VDE; CSA
Header Orientation 90°, Right Angle

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
