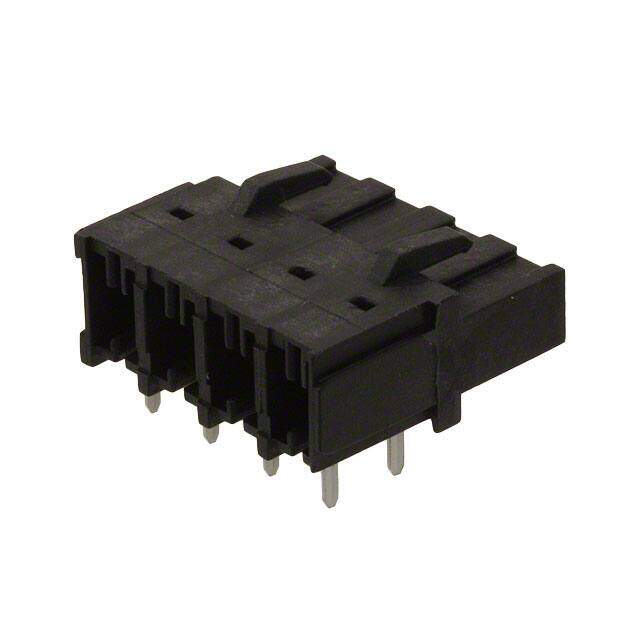

ELFB04230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 4POS 90DEG 5.08MM
PDF
/
Inventory: 2323
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA46), Nylon 4/6
Technical
Operating Temperature 125°C
Packaging Bulk
Published 2006
Series ELFB
Feature Interlocking (Side), Retention Latches
Part Status Active
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 4
Color Black
Number of Rows 2
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 9.93mm
Insulation Height 0.391 9.93mm
Reach Compliance Code unknown
Termination Style Solder
Voltage 300V
Contact Tail Length 0.123 3.12mm
Max Current Rating 15A
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Number of Ways 4
Safety Approval UL; VDE; CSA
Header Orientation 90°, Right Angle
Dimensions
Length 20.95mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
