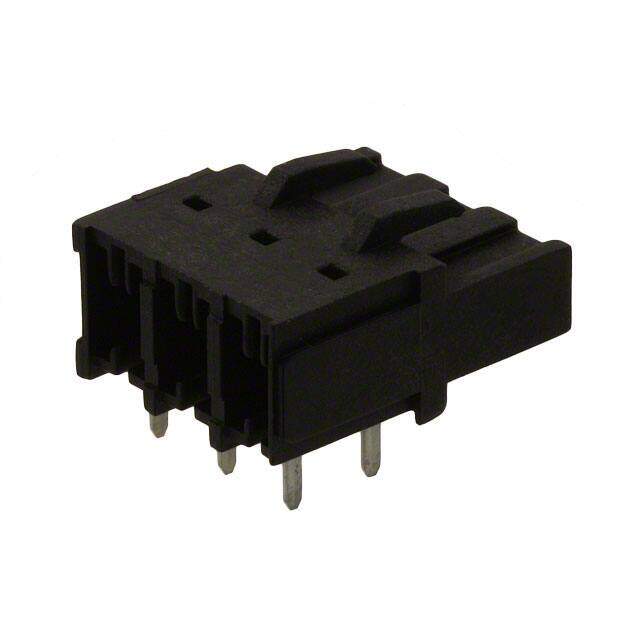

ELFB03230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 3POS 90DEG 5.08MM
PDF
/
Inventory: 6158
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA46), Nylon 4/6
Technical
Operating Temperature 125°C
Packaging Bulk
Published 2006
Series ELFB
Feature Interlocking (Side), Retention Latches
Part Status Active
ECCN Code EAR99
Type Header, Female Sockets
Number of Positions 3
Color Black
Number of Rows 2
Additional Feature NYLON 46, UL: 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.391 9.93mm
Reach Compliance Code unknown
Current Rating 15A
Termination Style Solder
Insulation Resistance 100GOhm
Voltage 300V
Contact Tail Length 0.123 3.12mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Number of Decks 1
Number of Ways 3
Safety Approval UL; VDE; CSA
Header Orientation 90°, Right Angle
Dimensions
Length 15.24mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
