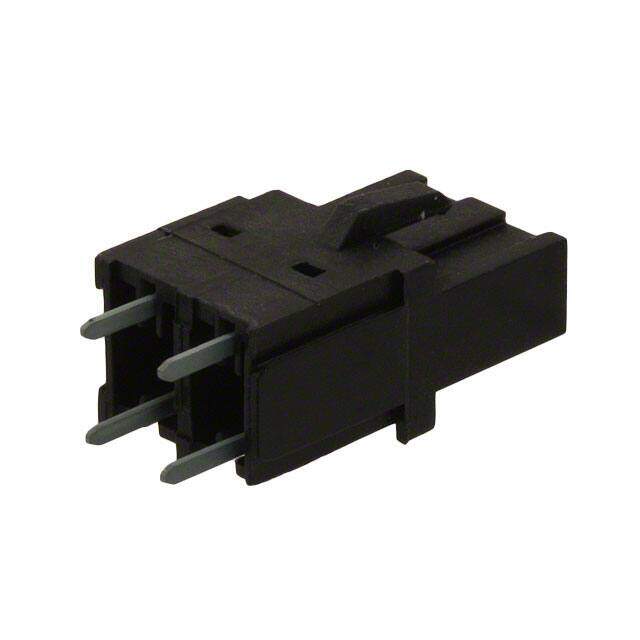

ELFB02280
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 2POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2144
≥1 USD $1.2144
≥10 USD $0.92224
≥100 USD $0.854656
≥500 USD $0.768416
≥1000 USD $0.74976
≥3000 USD $0.66
Inventory: 115
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 10.16mm
Technical
Header Orientation Vertical
Safety Approval UL; VDE; CSA
Number of Ways 2
Number of Decks 1
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Insulation Resistance 100GOhm
Termination Style Solder
Current Rating 15A
Reach Compliance Code unknown
Insulation Height 0.750 19.05mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature NYLON 46, UL: 94V-0
Number of Rows 2
Color Black
Number of Positions 2
Type Header, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Interlocking (Side), Retention Latches
Series ELFB
Published 2006
Packaging Bulk
Operating Temperature 125°C
Physical
Housing Material Polyamide (PA46), Nylon 4/6
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 8 Weeks
