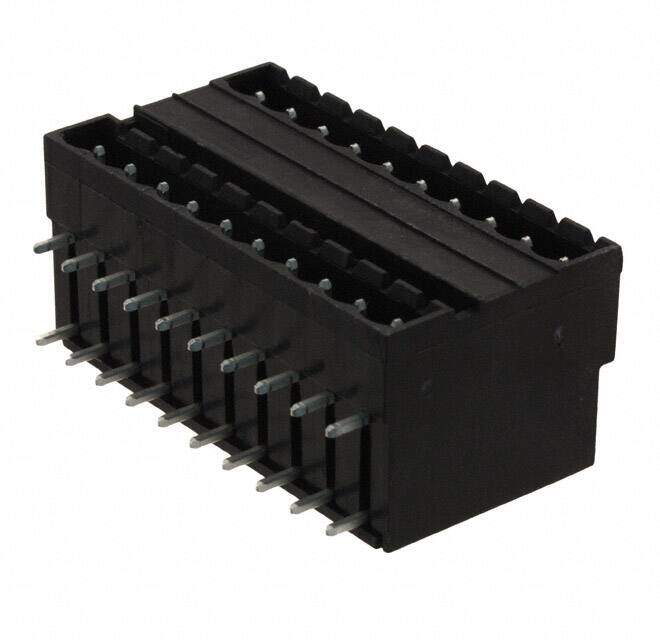

ELFA20110

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 20POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $5.23
Unit Price: USD $5.227605
≥1 USD $5.227605
≥10 USD $4.931707
≥100 USD $4.652547
≥500 USD $4.389201
≥1000 USD $4.140751
Inventory: 1208
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 52mm

Technical

Header Orientation 90°, Right Angle
Safety Approval UL; VDE; CSA
Number of Ways 20
Positions Per Level 10
Number of Decks 2
Contact Mating Finish Tin
Current 15A
Number of Levels 2
Max Current Rating 15A
Contact Tail Length 0.155 3.94mm
Voltage 300V
Termination Style Solder
Current Rating 15A
Reach Compliance Code unknown
Insulation Height 1.107 28.12mm
Depth 22.3mm
Orientation Right Angle
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature NYLON, UL: 94V-0
Voltage - Rated 300V
Number of Rows 2
Color Black
Number of Positions 20
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Part Status Active
Series ELFA
Published 2003
Packaging Bulk
Operating Temperature 125°C

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass

Supply Chain

Factory Lead Time 8 Weeks
