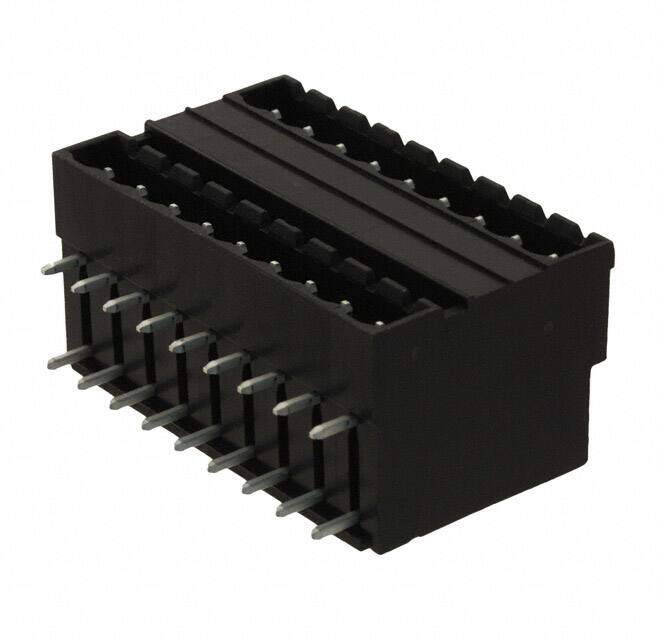

ELFA18110 image
Favorite
ELFA18110 image
Favorite

ELFA18110

Amphenol PCD
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 18POS 90DEG 5MM
PDF
/
Inventory: 3989
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Header Orientation 90°, Right Angle
Safety Approval UL; VDE; CSA
Number of Ways 18
Positions Per Level 9
Number of Decks 2
Contact Mating Finish Tin
Current 15A
Number of Levels 2
Max Current Rating 15A
Contact Tail Length 0.155 3.94mm
Voltage 300V
Termination Style Solder
Current Rating 15A
Reach Compliance Code unknown
Insulation Height 1.107 28.12mm
Depth 22.47mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated 300V
Number of Rows 2
Color Black
Number of Positions 18
Type Header, Male Pins, Shrouded (4 Side)
Part Status Active
Series ELFA
Published 2006
Packaging Bulk
Operating Temperature 125°C

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 8 Weeks
