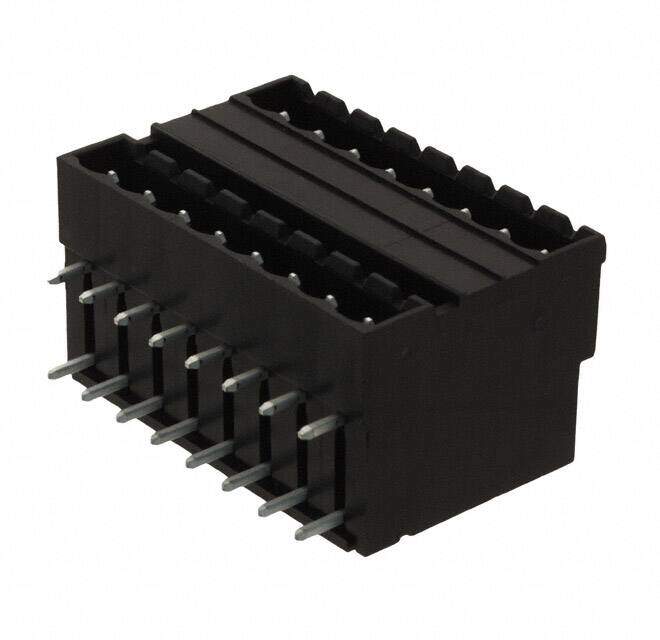

ELFA16110
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 16POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $5.6
Unit Price: USD $5.5968
≥1 USD $5.5968
≥10 USD $4.26272
≥100 USD $3.992384
≥500 USD $3.548864
≥1000 USD $3.471688
≥3000 USD $3.201642
Inventory: 52
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 42mm
Technical
Header Orientation 90°, Right Angle
Safety Approval UL; VDE; CSA
Number of Ways 16
Positions Per Level 8
Number of Decks 2
Contact Mating Finish Tin
Current 15A
Number of Levels 2
Max Current Rating 15A
Contact Tail Length 0.155 3.94mm
Voltage 300V
Termination Style Solder
Current Rating 15A
Reach Compliance Code unknown
Insulation Height 1.107 28.12mm
Depth 22.3mm
Orientation Right Angle
Pitch 0.197 5.00mm
Additional Feature NYLON, UL: 94V-0
Voltage - Rated 300V
Number of Rows 2
Color Black
Number of Positions 16
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series ELFA
Published 2003
Packaging Bulk
Operating Temperature 125°C
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
