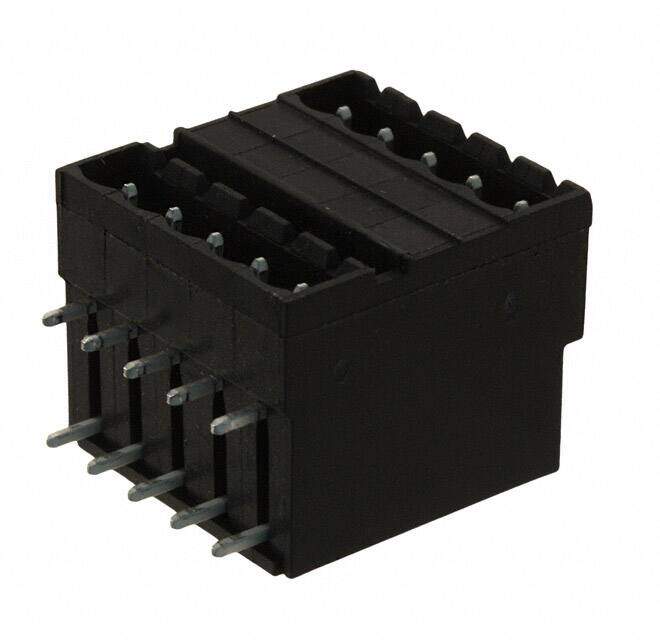

ELFA10110
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 10POS 90DEG 5MM
PDF
/
Inventory: 9976
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Operating Temperature 125°C
Packaging Bulk
Published 2003
Series ELFA
Part Status Active
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Color Black
Number of Rows 2
Voltage - Rated 300V
Additional Feature NYLON, UL: 94V-0
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 22.3mm
Insulation Height 1.107 28.12mm
Reach Compliance Code unknown
Current Rating 15A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.155 3.94mm
Max Current Rating 15A
Number of Levels 2
Current 15A
Contact Mating Finish Tin
Number of Decks 2
Positions Per Level 5
Number of Ways 10
Safety Approval UL; VDE; CSA
Header Orientation 90°, Right Angle
Dimensions
Length 27mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
