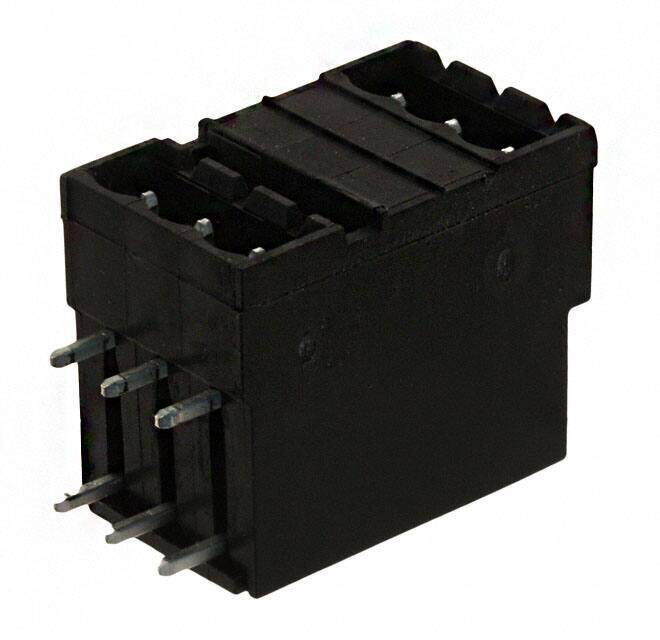

ELFA04110
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 4POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $1.42
Unit Price: USD $1.422458
≥1 USD $1.422458
≥10 USD $1.341948
≥100 USD $1.26599
≥500 USD $1.194329
≥1000 USD $1.12672
Inventory: 3460
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 12mm
Technical
Header Orientation 90°, Right Angle
Safety Approval UL; VDE; CSA
Number of Ways 4
Number of Decks 2
Contact Mating Finish Tin
Current 15A
Max Current Rating 15A
Contact Tail Length 0.155 3.94mm
Voltage 300V
Termination Style Solder
Current Rating 15A
Reach Compliance Code unknown
Insulation Height 1.107 28.12mm
Depth 22.3mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated 300V
Number of Rows 2
Color Black
Number of Positions 4
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Part Status Active
Series ELFA
Published 2003
Packaging Bulk
Operating Temperature 125°C
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
