VM0335500000G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

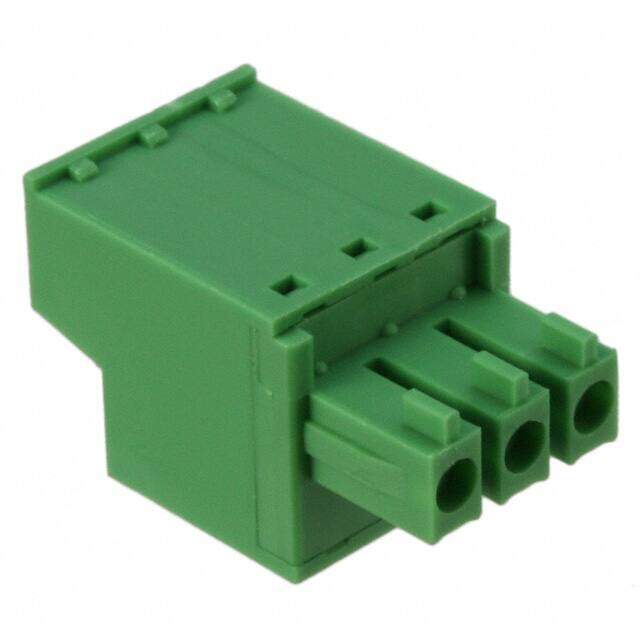

TERM BLOCK PLUG 3POS STR 3.81MM
PDF
/
Inventory: 8695
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic Resin
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series 03-381
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 3
Color Green
Pitch 0.150 3.81mm
Insulation Height 0.854 21.69mm
Termination Style Screw - Pressure Clip
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 16-28 AWG
Current - UL 10A
Torque - Screw 0.2 Nm (1.7 Lb-In)
Positions Per Level 3
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-1.5mm2
Wire Strip Length 6-7mm
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
