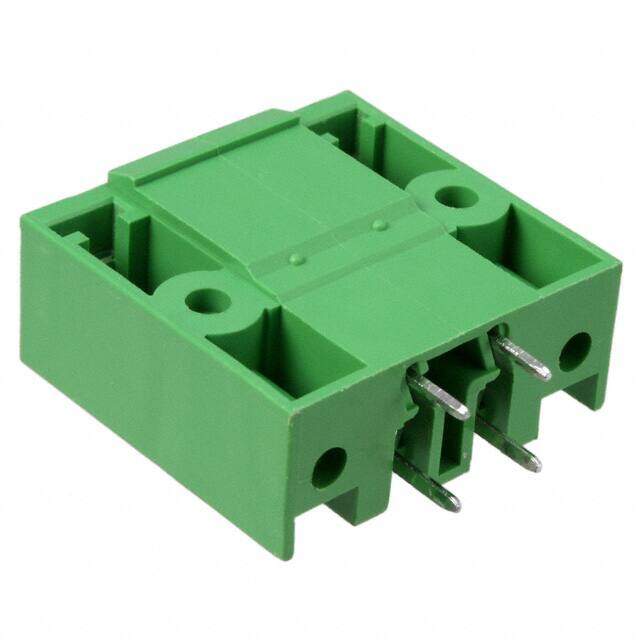

VC0201510000G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 2POS VERT 7.62MM
PDF
/
Inventory: 7114
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Housing Material Thermoplastic Resin
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series 07-762
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Blade Pins, Shrouded (4 Side)
Number of Positions 2
Color Green
Pitch 0.300 7.62mm
Insulation Height 1.142 29.00mm
Termination Style Solder
Contact Tail Length 0.197 5.00mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 32A
Positions Per Level 2
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
