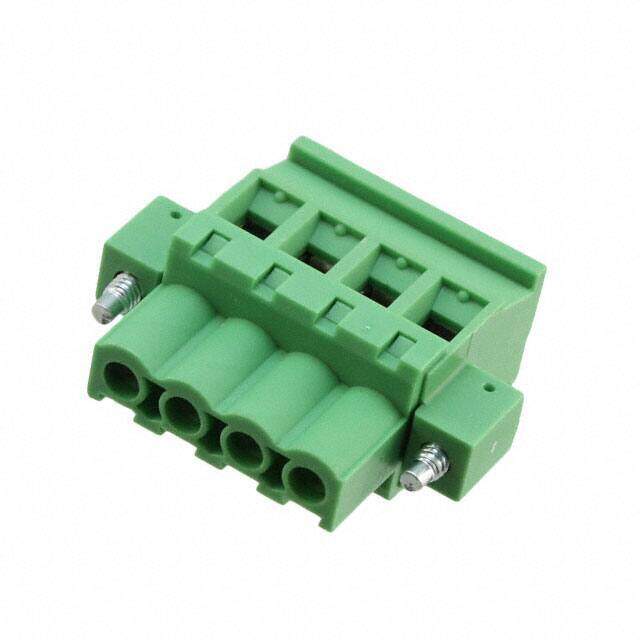

TS04515D0000G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 4POS 5.08MM
PDF
/
Inventory: 3503
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic Resin
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series 02-508
Feature Mating Flange, Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 4
Color Green
Pitch 0.200 5.08mm
Insulation Height 1.024 26.01mm
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-24 AWG
Current - UL 12A
Torque - Screw 0.4 Nm (3.5 Lb-In)
Plug Wire Entry 270°
Wire Gauge or Range - mm2 1-2.5mm2
Wire Strip Length 6-7mm
Screw Size M3
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
