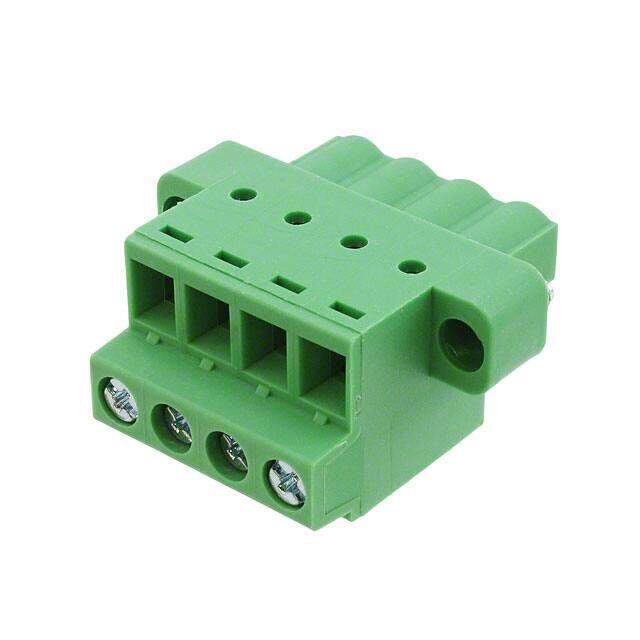

TS04515C0000G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TS ROHS3Compliant Mating Flange Retention Latches (Wire Side) Tin Terminal Block Plug, Female Sockets 12-24AWG -40C~115C 15A 300V
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.708083
≥1 USD $1.708083
≥200 USD $0.681395
≥500 USD $0.659076
≥1000 USD $0.64726
Inventory: 1114
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M3
Wire Strip Length 6-7mm
Wire Gauge or Range - mm2 0.34-2.5mm2
Plug Wire Entry 90°
Torque - Screw 0.4 Nm (3.5 Lb-In)
Current - UL 15A
Wire Gauge or Range - AWG 12-24 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Termination Style Screw - Leaf Spring, Wire Guard
Insulation Height 1.024 26.01mm
Pitch 0.200 5.08mm
Color Green
Number of Positions 4
Type Plug, Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Retention Latches (Wire Side)
Series TS
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 10 Weeks
