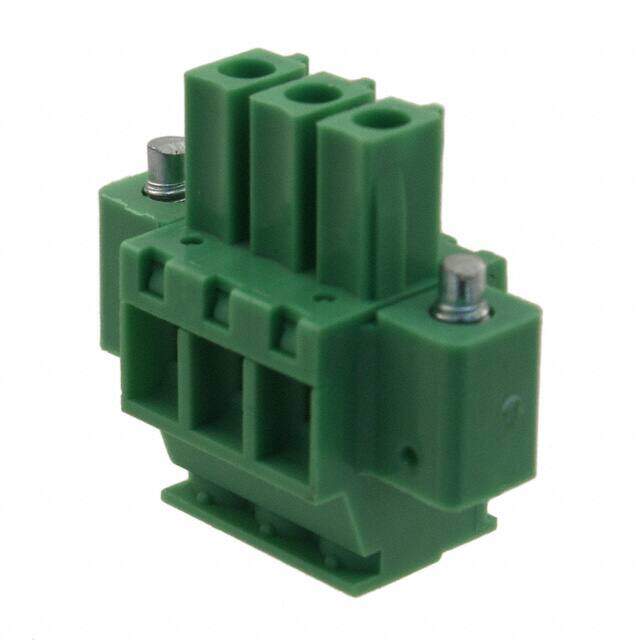

TS03315D0000G image
Favorite
TS03315D0000G image
Favorite

TS03315D0000G

Amphenol Anytek
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS 3.81MM
PDF
/
Inventory: 9027
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Technical

Screw Size M2
Wire Strip Length 6-7mm
Wire Gauge or Range - mm2 0.5-1.5mm2
Plug Wire Entry 270°
Torque - Screw 0.2 Nm (1.7 Lb-In)
Current - UL 8A
Wire Gauge or Range - AWG 16-28 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Termination Style Screw - Rising Cage Clamp
Insulation Height 0.752 19.10mm
Pitch 0.150 3.81mm
Color Green
Number of Positions 3
Type Plug, Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series 02-381
Packaging Bulk
Operating Temperature -40°C~115°C

Physical

Housing Material Thermoplastic Resin
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 10 Weeks
