KD2330500000G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

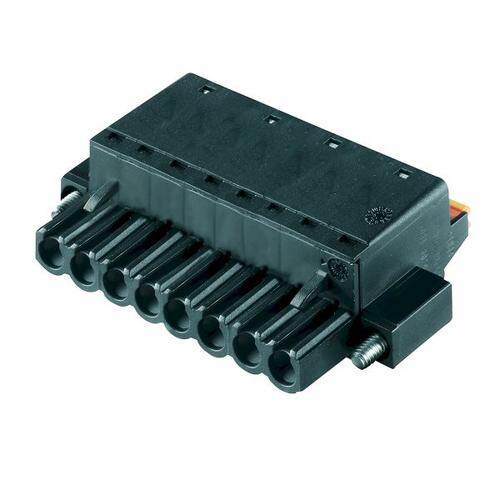

KD ROHS3Compliant Tin Phosphor Bronze Terminal Block Plug, Female Sockets 16-24AWG -40C~115C 5.5A 300V
PDF
/
Inventory: 1981
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series KD
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 23
Color Green
Pitch 0.150 3.81mm
Insulation Height 0.307 7.80mm
Termination Style Screwless - Leg Spring, Push-In Spring
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 16-24 AWG
Current - UL 5.5A
Plug Wire Entry 180°
Wire Strip Length 9-10mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
