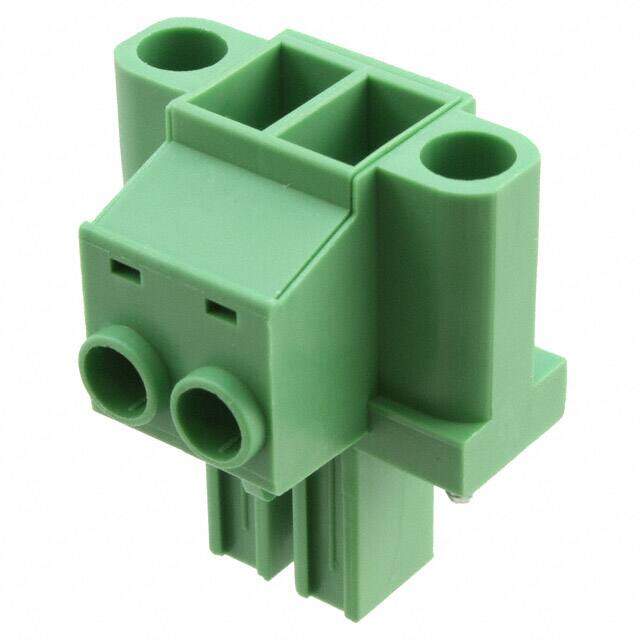

20020517-M021B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
2 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm)180° Free Hanging (In-Line)
PDF
/
Buying Options
Total Price: USD $3.56
Unit Price: USD $3.561369
≥1 USD $3.561369
≥10 USD $3.359785
≥100 USD $3.16961
≥500 USD $2.9902
≥1000 USD $2.820943
Inventory: 4016
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic Resin
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series 04-762
Feature Mating Flange, Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Terminal Block
Type Plug, Blade Sockets
Number of Positions 2
Max Operating Temperature 115°C
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Voltage - Rated 300V
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 36.5mm
Insulation Height 0.902 22.90mm
Current Rating 32A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 2
Housing Color Green
Voltage 300V
Number of Circuits 2
Max Voltage Rating (AC) 300V
Max Current Rating 32A
Number of Levels 1
Current 32A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 8 AWG
Wire/Cable Gauge 24 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 8-24 AWG
Current - UL 32A
Torque - Screw 0.79 Nm (7.0 Lb-In)
Positions Per Level 2
Plug Wire Entry 180°
Wire Gauge or Range - mm2 2.5-10mm2
Wire Strip Length 6-7mm
Number of Positions Per Level 2
Screw Size M3.5
Max Supply Voltage (AC) 300V
Dimensions
Length 30.48mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
