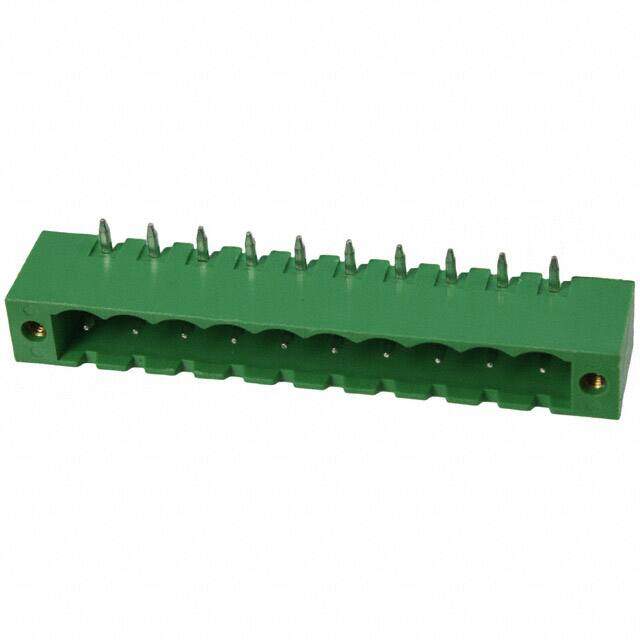

20020111-H101A01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right AngleThrough Hole
PDF
/
Buying Options
Total Price: USD $1.37
Unit Price: USD $1.374676
≥1 USD $1.374676
≥10 USD $1.296864
≥100 USD $1.223467
≥500 USD $1.154202
≥1000 USD $1.088874
Inventory: 1561
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Thermoplastic Resin
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series 06-508
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Terminal Block
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Max Operating Temperature 115°C
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 300V
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 9.2mm
Insulation Height 0.335 8.51mm
Current Rating 12A
Termination Style Solder
Number of Contacts 10
Housing Color Green
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Voltage Rating (AC) 300V
Max Current Rating 12A
Number of Levels 1
Current 12A
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 12A
Positions Per Level 10
Header Orientation 90°, Right Angle
Number of Positions Per Level 10
Dimensions
Length 60.96mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
