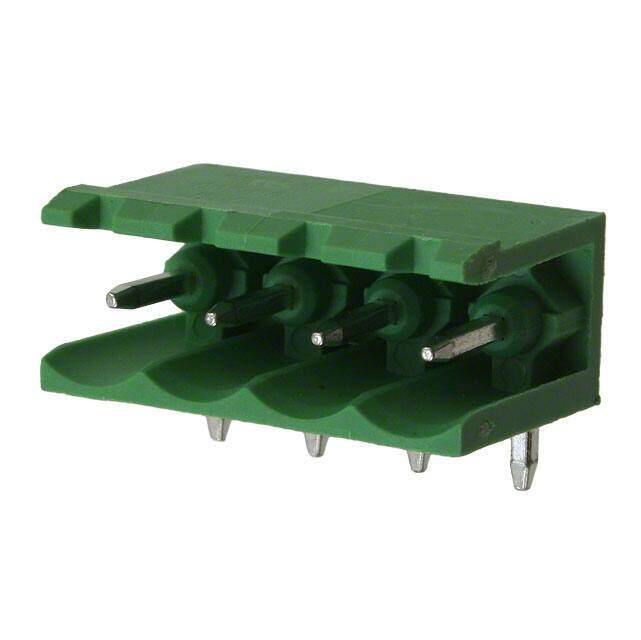

20020109-G041A01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
4 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 90°, Right AngleThrough Hole
PDF
/
Inventory: 4662
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 20mm
Technical
Number of Positions Per Level 4
Header Orientation 90°, Right Angle
Positions Per Level 4
Current - UL 12A
Voltage - UL 300V
Contact Mating Finish Tin
Current 12A
Number of Levels 1
Max Current Rating 12A
Max Voltage Rating (AC) 300V
Contact Tail Length 0.138 3.50mm
Voltage 300V
Housing Color Green
Number of Contacts 4
Termination Style Solder
Current Rating 12A
Insulation Height 0.335 8.51mm
Depth 12mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated 300V
Gender Male
Number of Rows 1
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 115°C
Number of Positions 4
Type Header, Male Pins, Shrouded (2 Side)
Connector Type Terminal Block
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 06-500
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Housing Material Thermoplastic Resin
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
